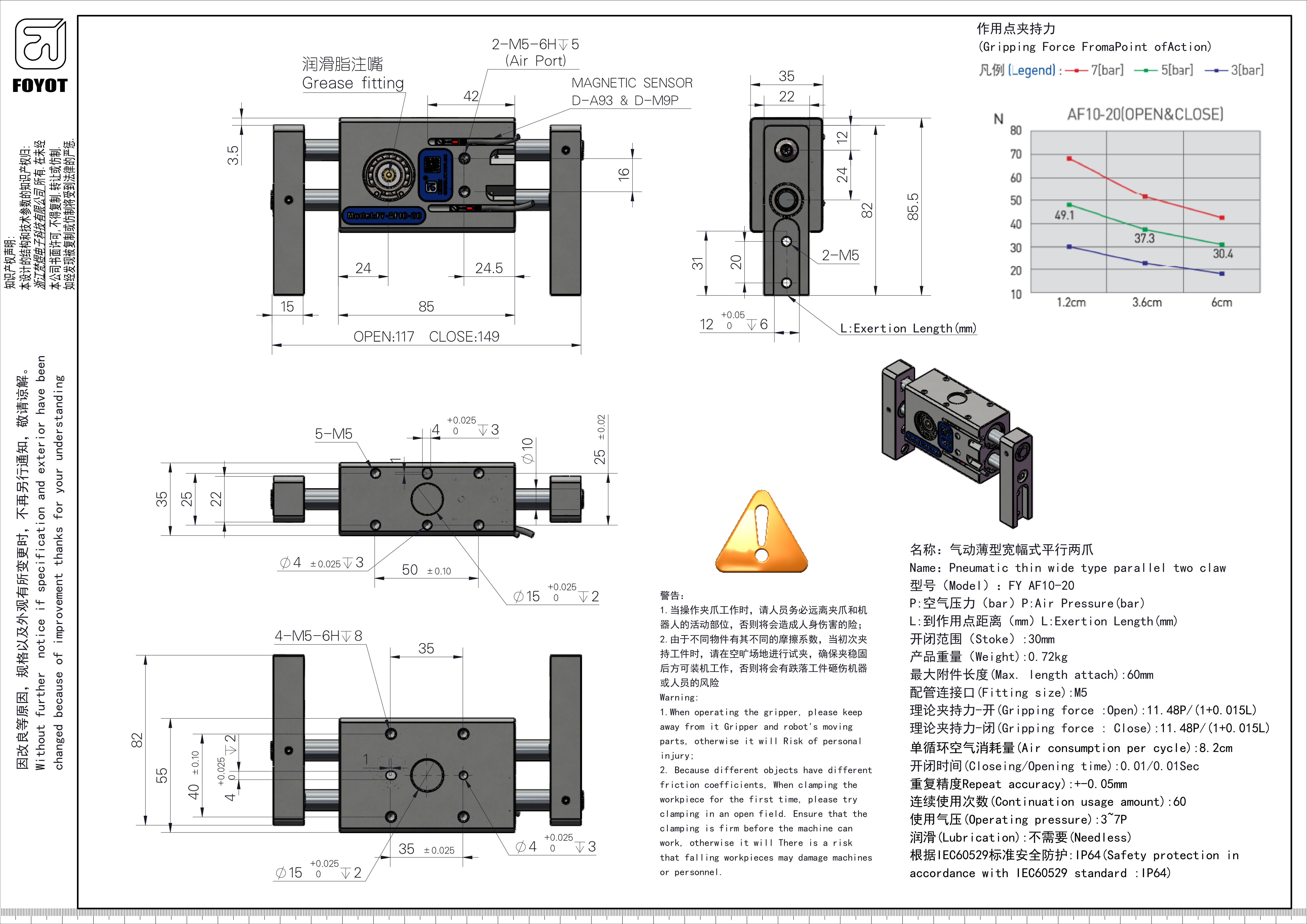

名称：气动薄型宽幅式平行两爪

Name:Pneumatic thin wide type parallel two claw

型号(Mode I):FYAF10-20

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mm)

开闭范围(Stoke):30mm

产品重量(We ight):0.72kg

最大附件长度(Max.length attach):60mm

配管连接口(Fitting size):M5

理论夹持力-开(Gripping force:0pen):11.48P/(1+0.015L)

理论夹持力-闭(Gripping force:Close):11.48P/(1+0.015L)

单循环空气消耗量(Air consumption per cycle):8.2cm

开闭时间(Closeing/0 pening time):0.01/0.01Sec

重复精度Repeat accuracy):+-0.05mm

连续使用次数(Continuation usage amount):60

使用气压(0 perating pressure):3~7P

润滑(Lubrication):不需要(Needless)

根据IEC60529标准安全防护：IP64(Safety protection in

accordance with IEC60529 standard IP64)
